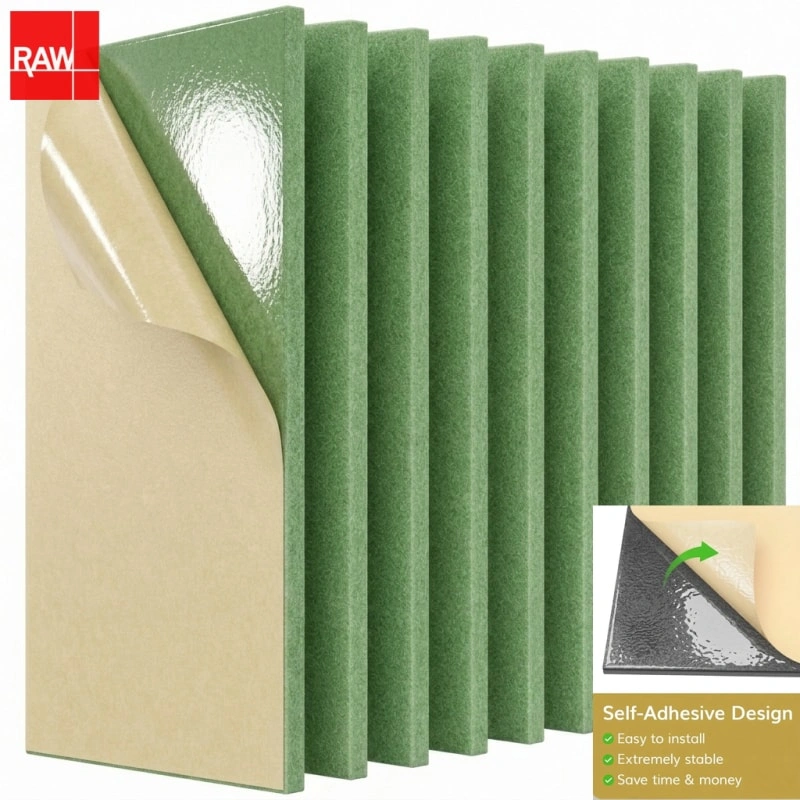

Quick-Install Self-Adhesive PET Acoustic Raw Sheet 9mm
Quick-Install Self-Adhesive PET Acoustic Raw Sheet 9mm
Superior Adhesive Performance for Long-Term Reliability
ASTM D3121 Initial Tack Test
Demonstrating the aggressive instant grab of RAW Acoustic’s Zero-VOC adhesive backing. In strict accordance with ASTM D3121, a maximum size #32 steel ball exhibits an inertial rolling displacement of strictly less than 30 mm, verifying superior initial bonding power.
ASTM D3654 Holding Power Test
Demonstrating the long-term shear resistance of RAW Acoustic’s Zero-VOC self-adhesive backing under a continuous 1kg load for 24 hours (ASTM D3654). Zero sagging, zero degumming.

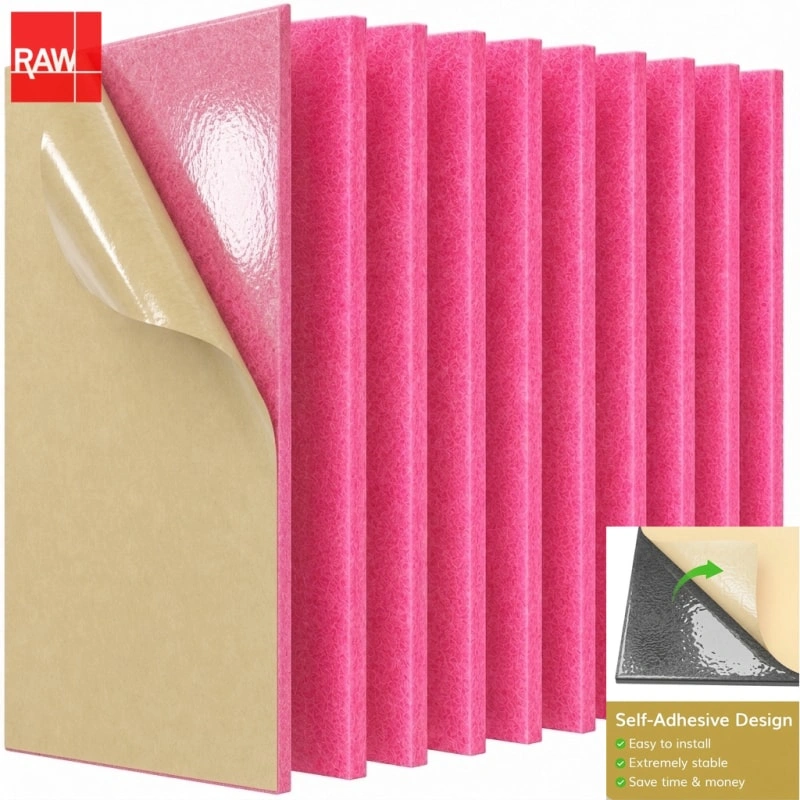

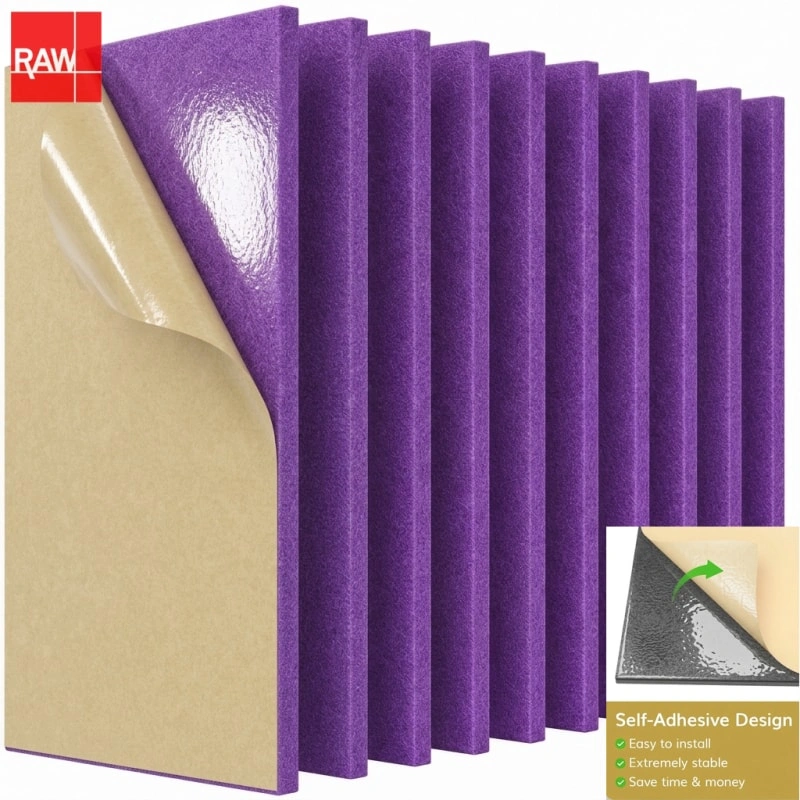

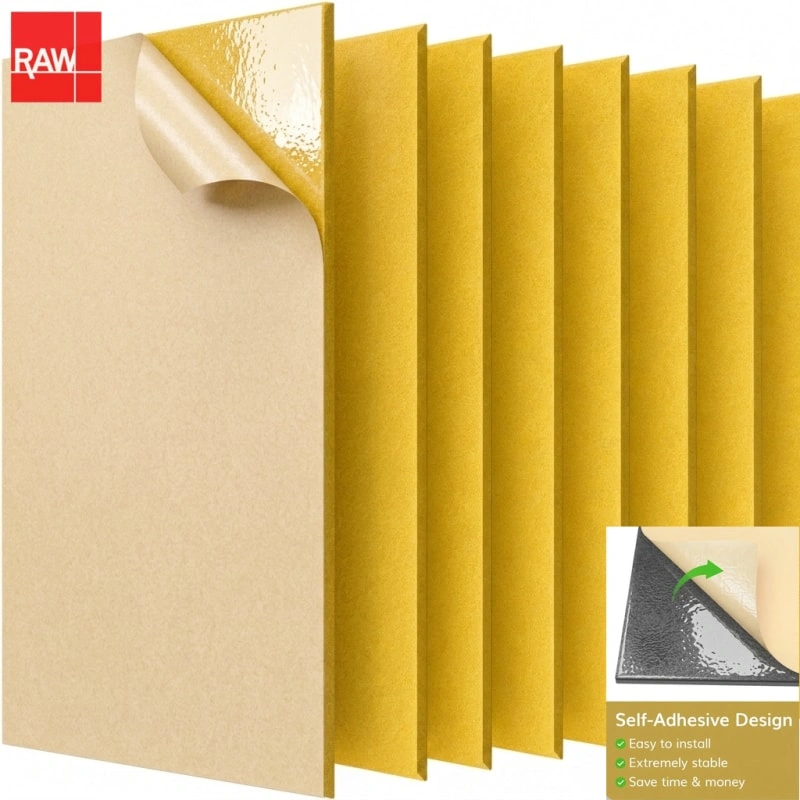

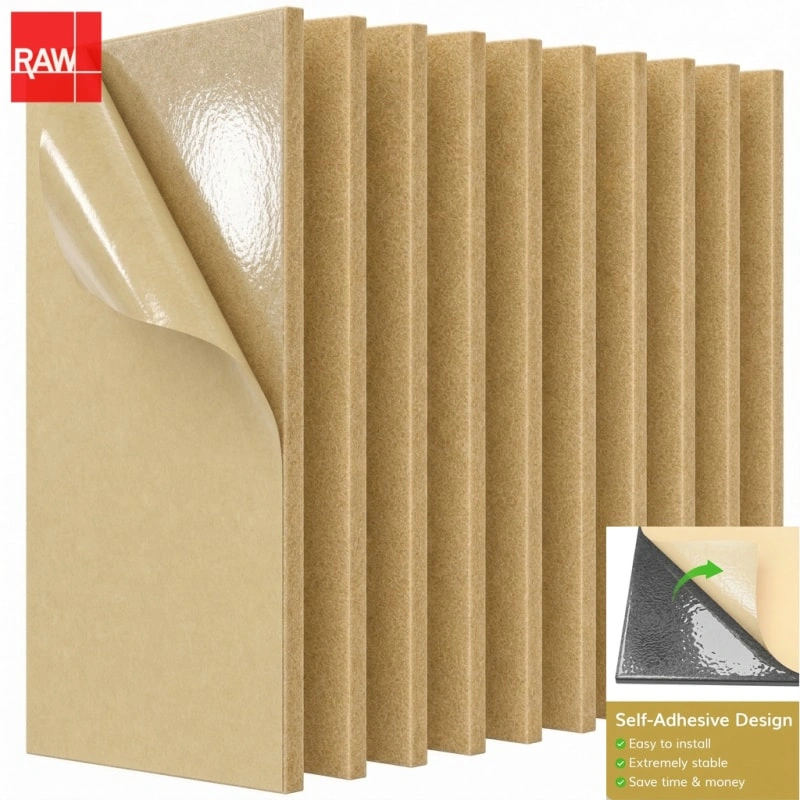

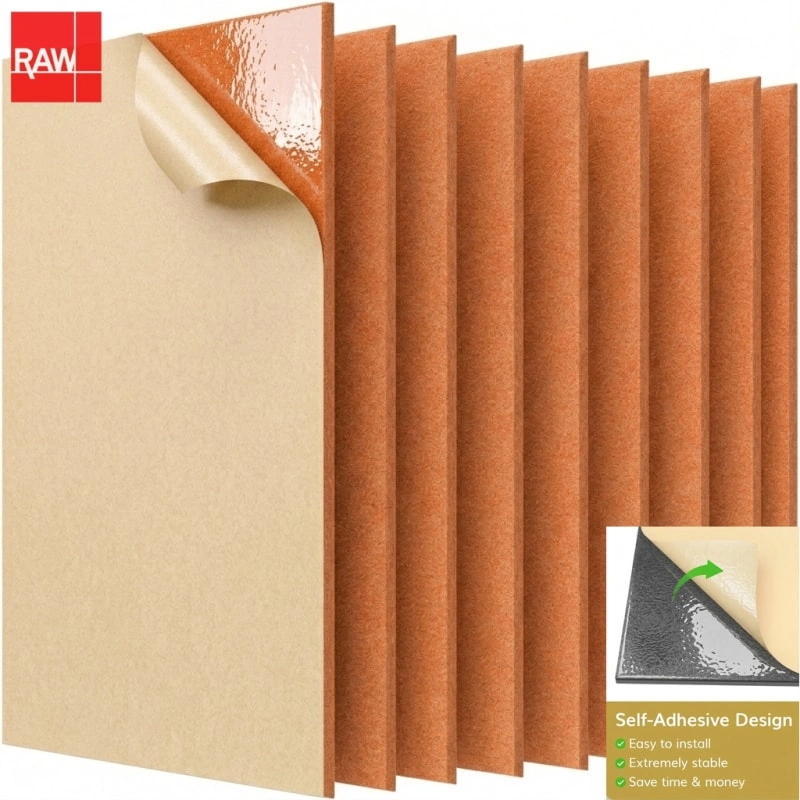

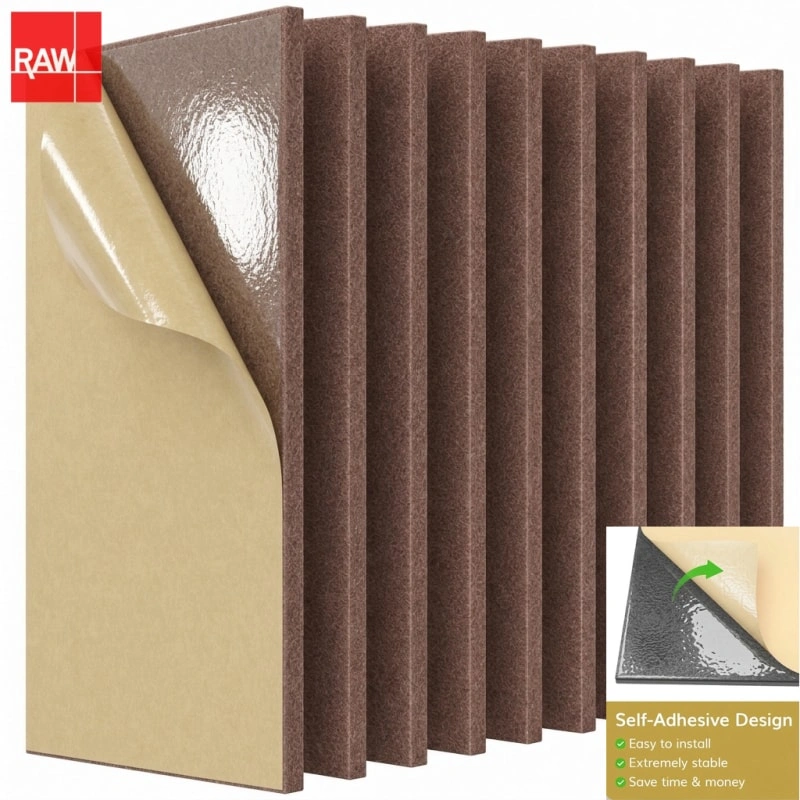

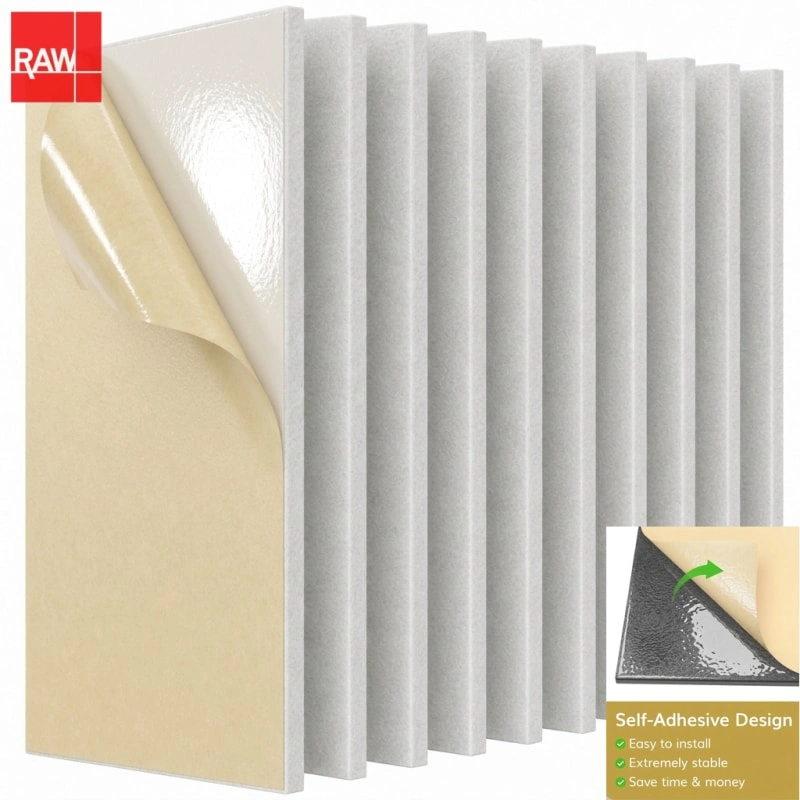

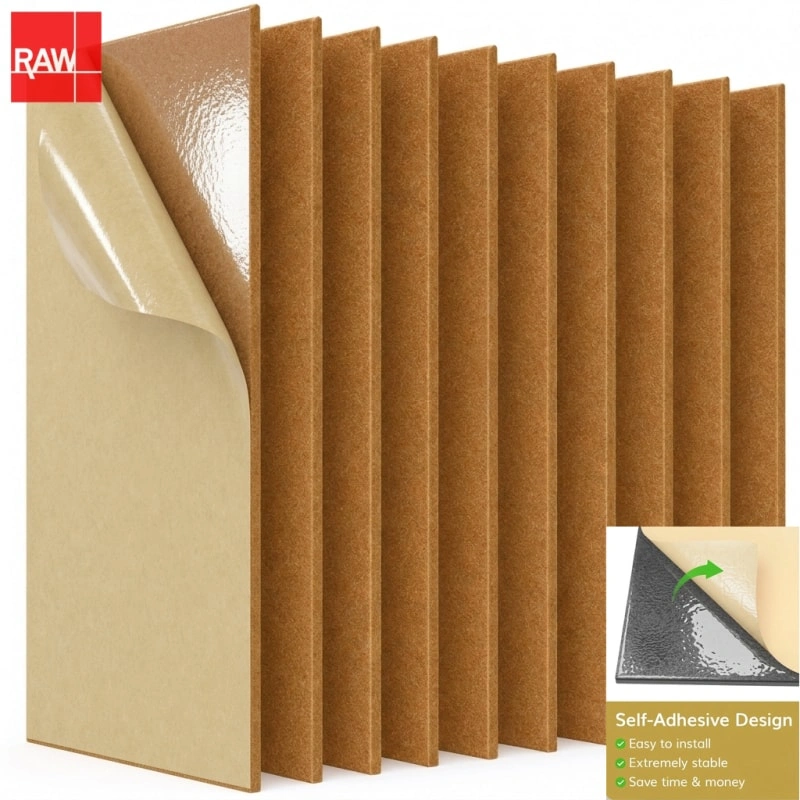

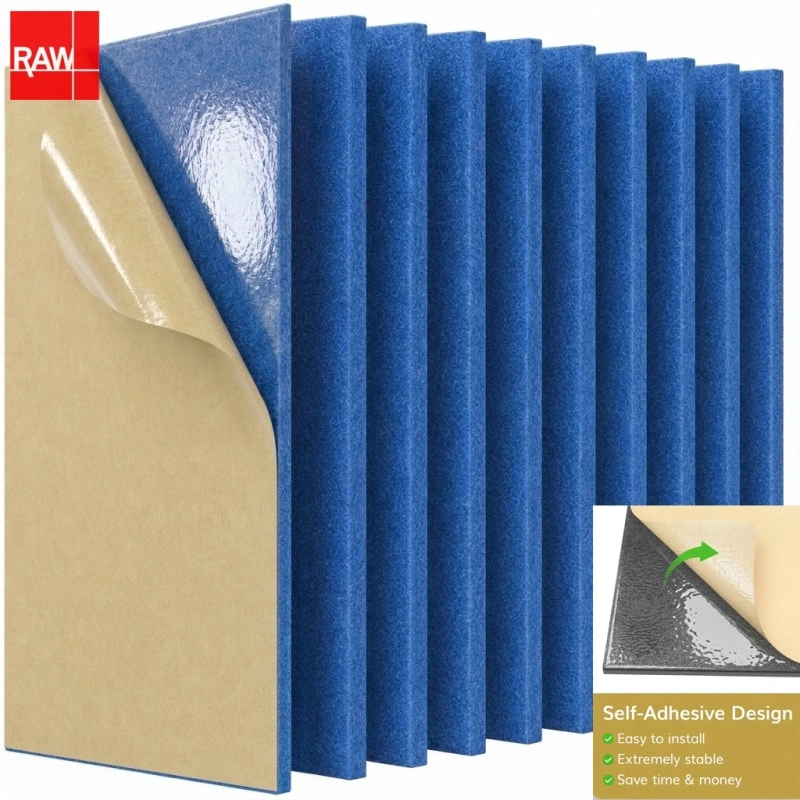

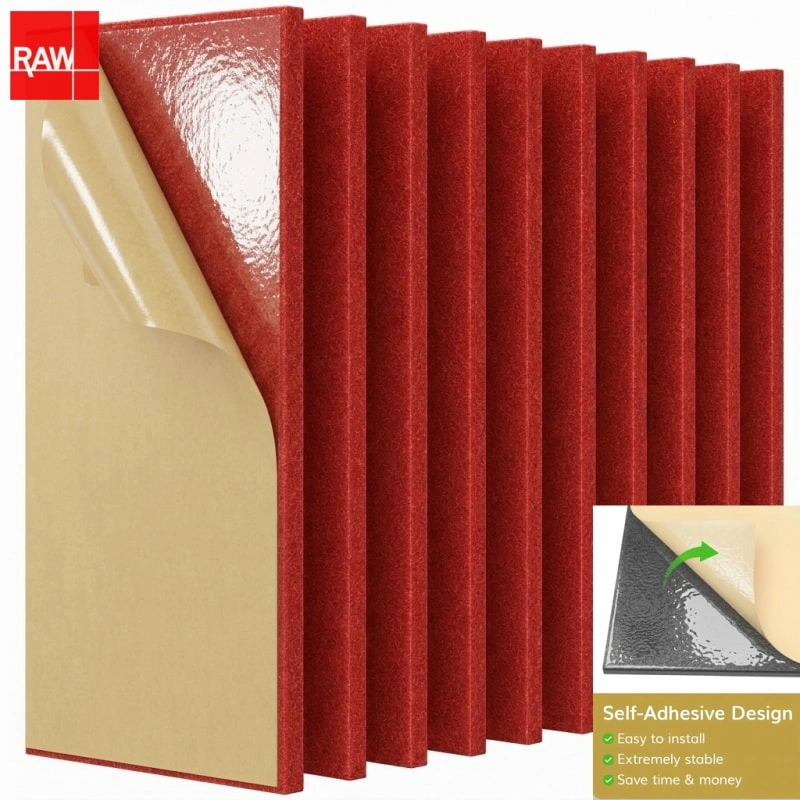

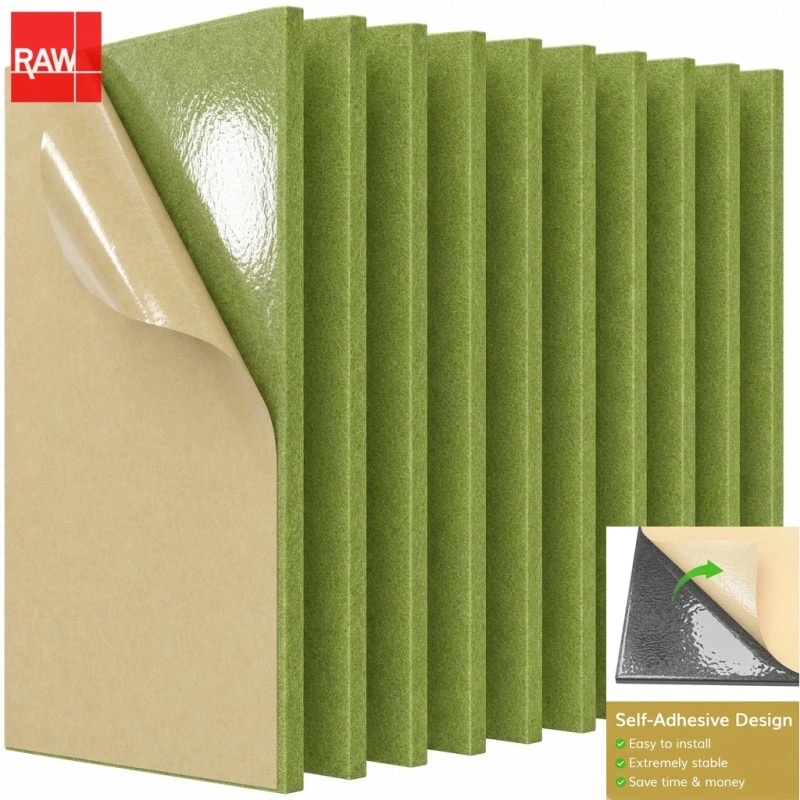

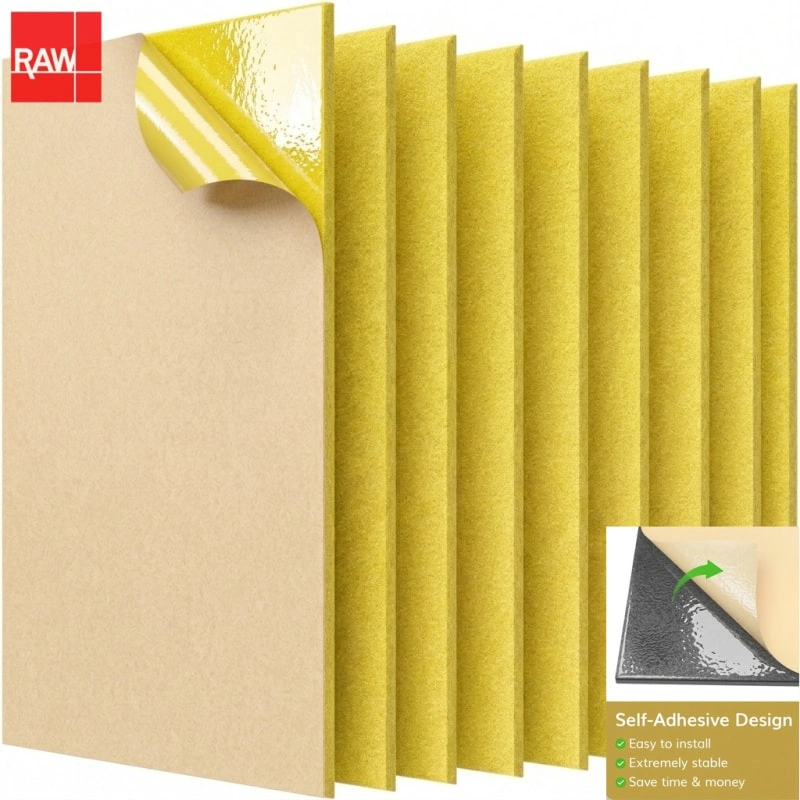

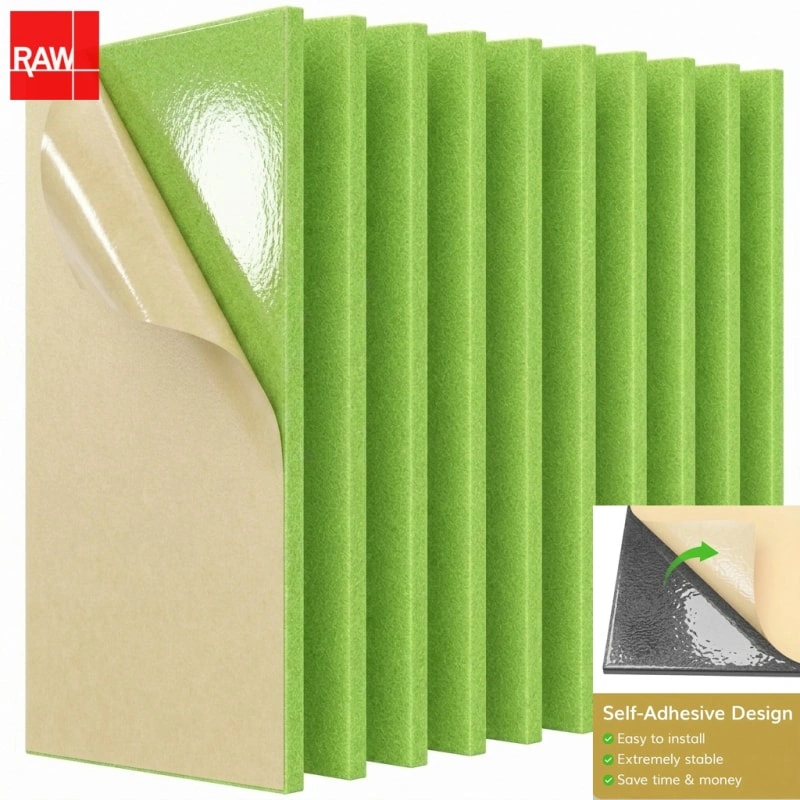

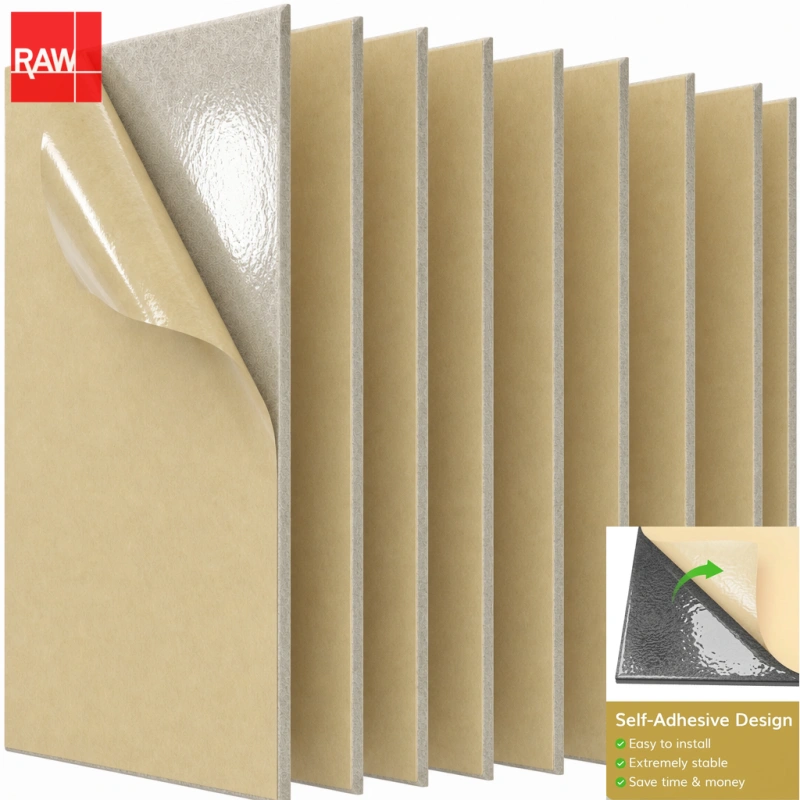

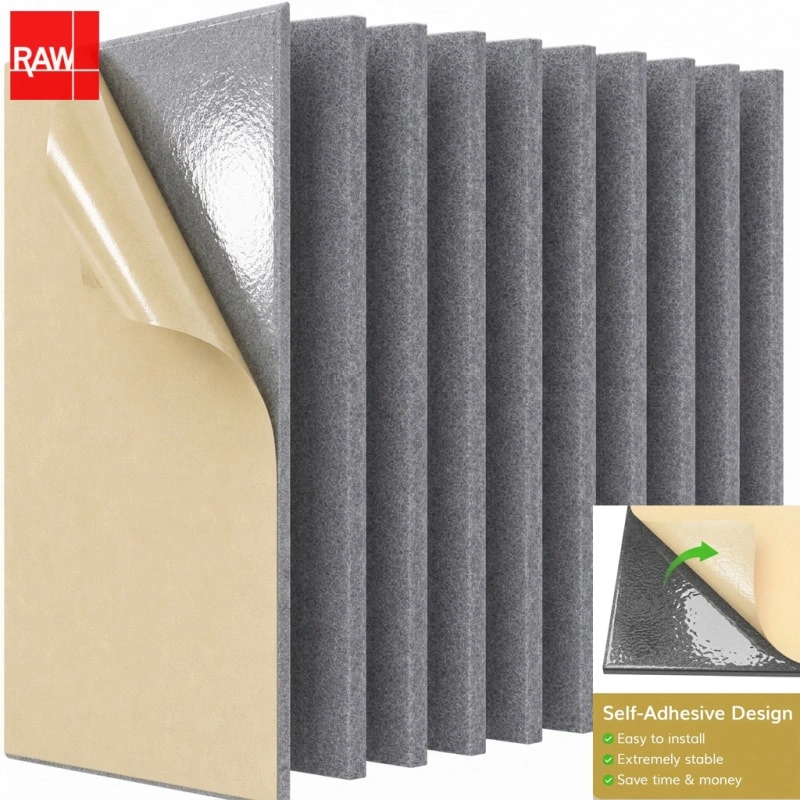

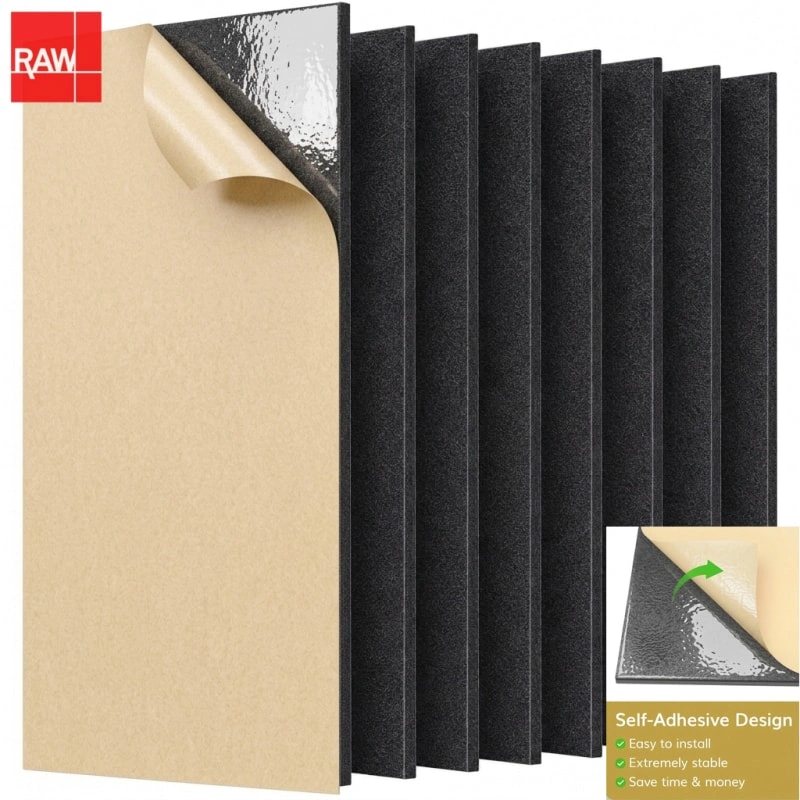

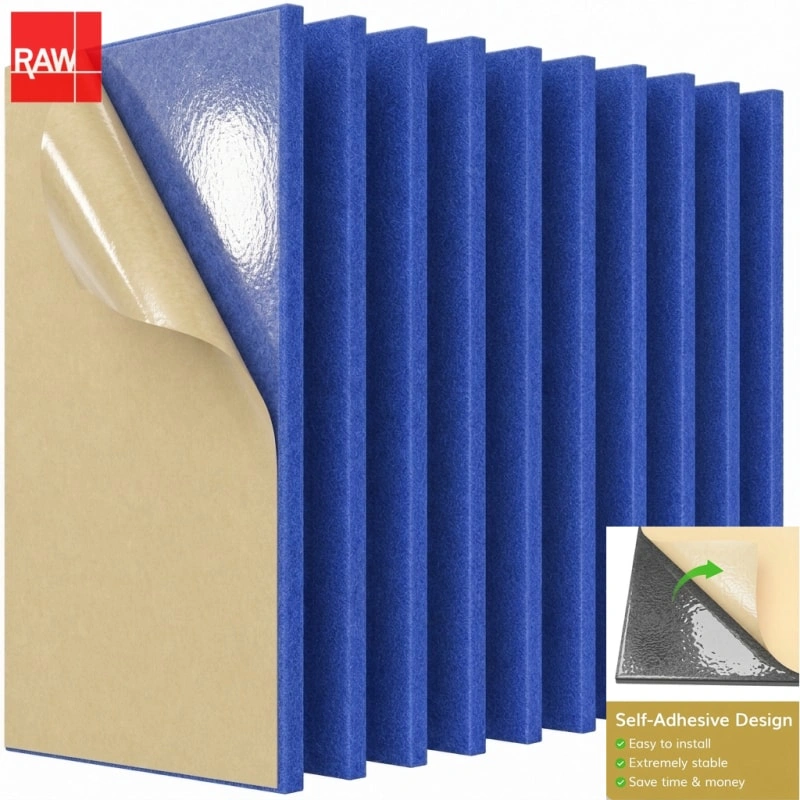

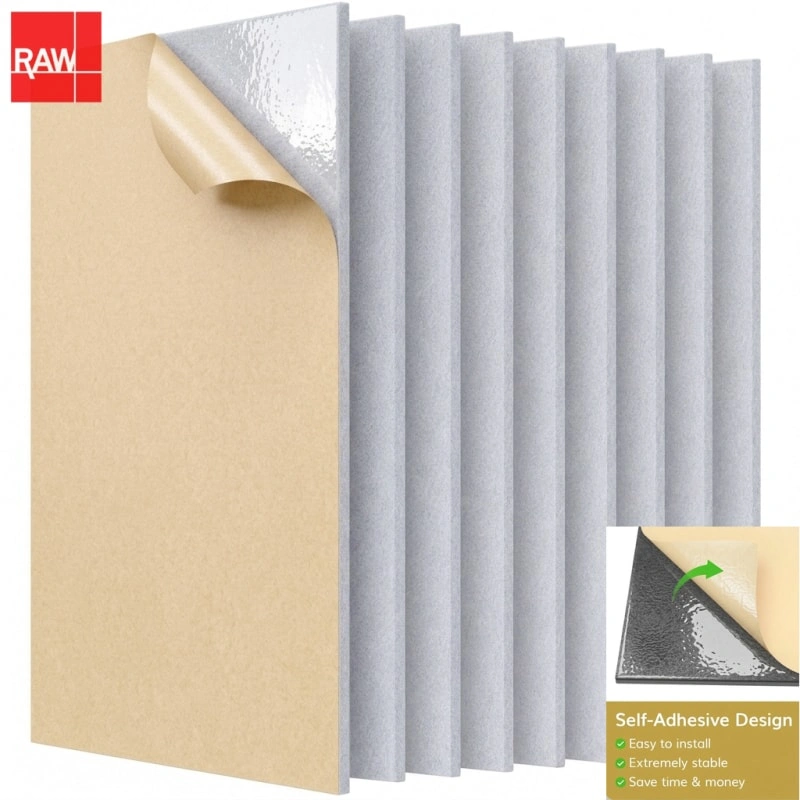

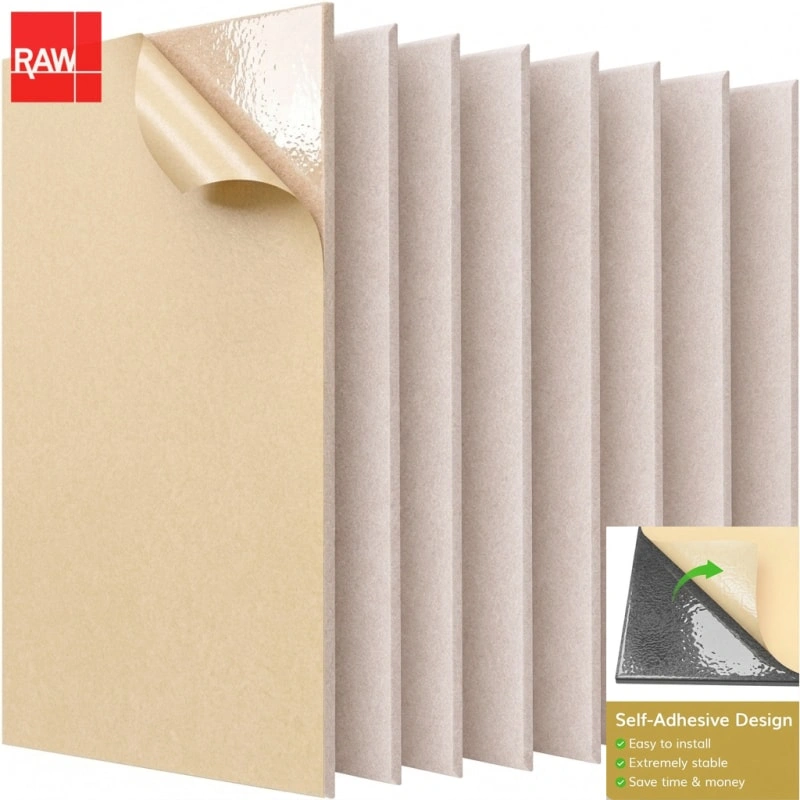

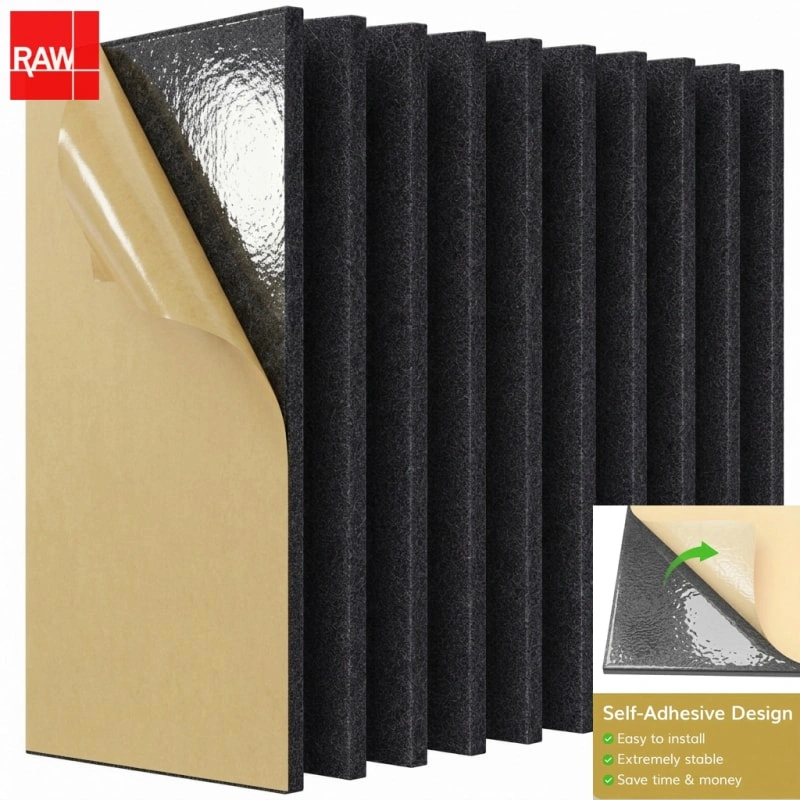

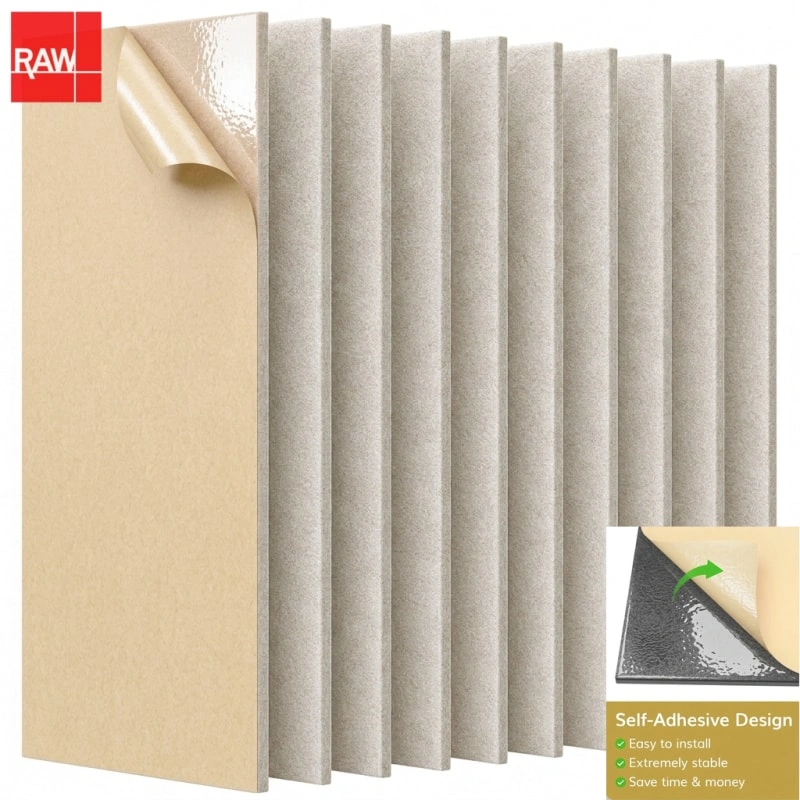

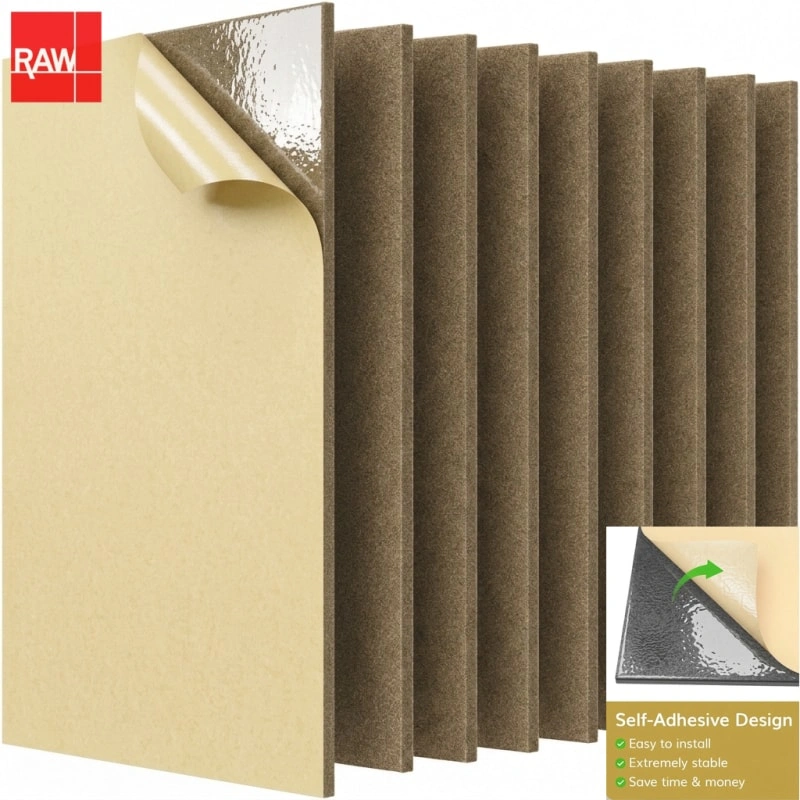

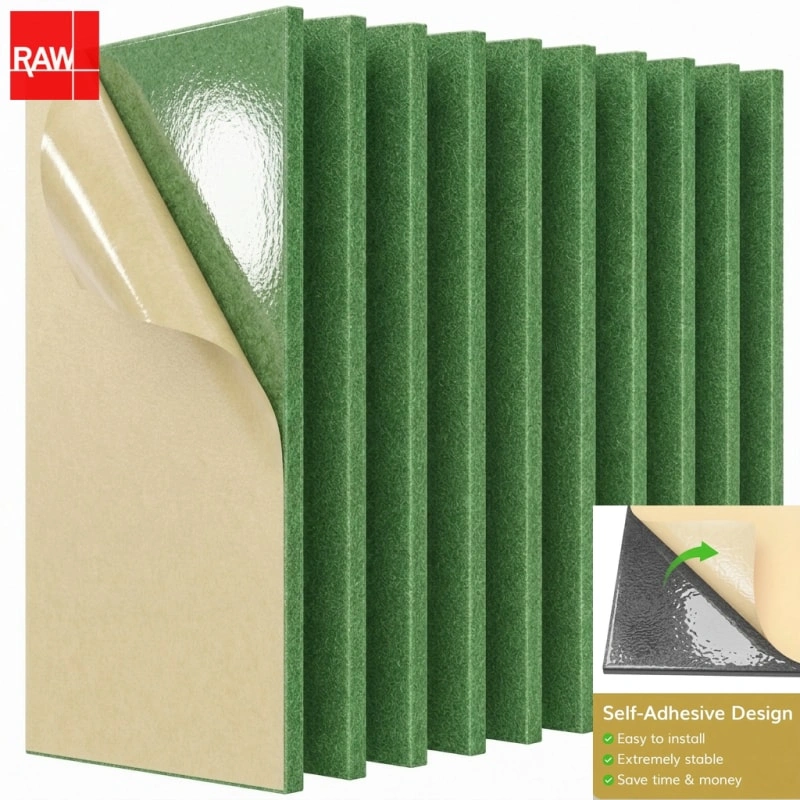

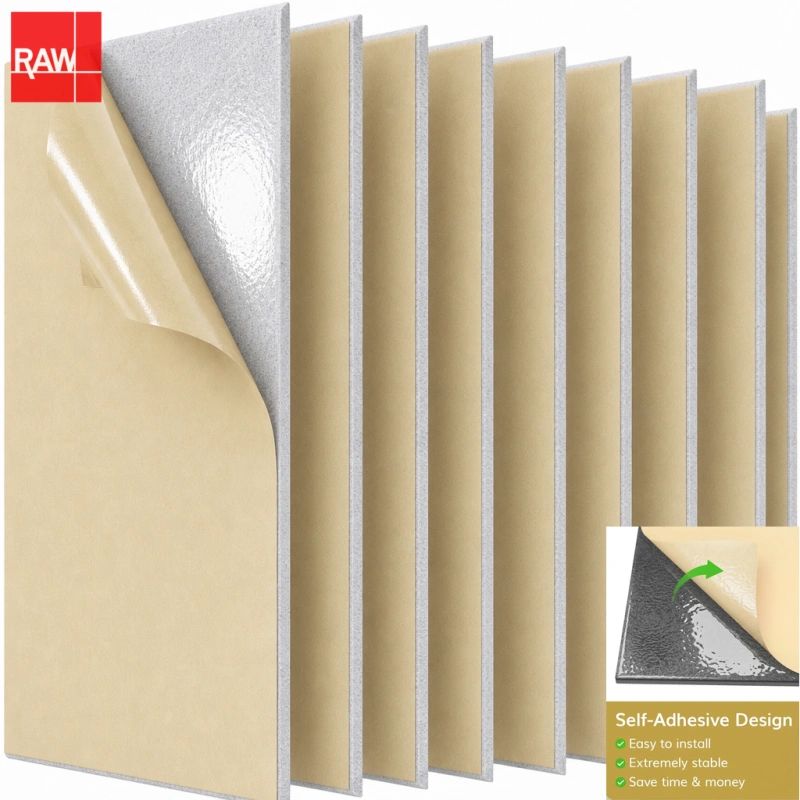

Engineered for rapid commercial installations and efficient off-site fabrication, our Self-Adhesive PET Acoustic Master Sheets (1.22m × 2.42m / 4’×8′) integrate high-density polyester fiber panels with a pre-applied industrial-grade pressure-sensitive adhesive (PSA) backing. Protected by an easy-release kraft silicone paper liner, these sheets eliminate the need for messy liquid glues on-site, cutting installation labor time by up to 50%.
Manufactured directly in our specialized facility, these panels maintain uniform thickness, exceptional structural rigidity, and clean CNC-routing capabilities, making them the ultimate choice for wall panel converters, interior contractors, and acoustic distributors.
Technical Specifications
| Feature / Parameter | Specification Details |
|---|---|
| Standard Dimensions | 1220mm × 2440mm (4ft × 8ft) |
| Available Thickness | 8mm – 24mm (Custom thicknesses available) |
| Density & Weight | 1000 GSM – 1900 GSM (Precision-calibrated) |
| Adhesive System | High-tack industrial PSA (Strong permanent bond) |
| Release Liner | Premium brown kraft silicone paper (Smooth peel-off, zero tearing) |
| Fire Safety Rating | ASTM E84 Class A / EN 13501-1 Class B-s1,d0 |
| Acoustic Performance | NRC 0.75 – 0.90 sound absorption. (Depends on the thickness and density) |
| Color Range | Available in 48 Solid Architectural Colors (RAW-001 to RAW-048) |
Key Advantages for Fabricators & Contractors
-
Instant Peel & Stick Application: Ready-to-use adhesive backing adheres firmly to painted drywall, plywood, metal, and glass surfaces without primer delays.
-
Clean Release Liner Protection: The heavy-duty kraft silicone release paper protects the adhesive layer from dust and moisture during transit and cuts cleanly during CNC processing.
-
Zero-Fuzzing CNC Routing: High-density thermobonded fiber matrix allows precise V-grooving, 3D beveling, and custom shapes with crisp, fray-free edges.
-
Eco-Friendly & Safe: 100% recyclable rPET, formaldehyde-free, and low VOC, satisfying modern green building standards.
Export Packaging & Container Logistics
-
Palletized Protection: Flat-packed on reinforced export wooden pallets with edge corner guards and moisture-barrier stretch wrap.
-
Wholesale & Container Load: Optimized for 20’GP and 40’HQ container shipping. Factory-direct wholesale pricing and complimentary color sample kits available upon request.
